Short DL6WU yagi for 23cm

[Image]

My 23cm yagi antenna, in fixed position to the local ATV repeater.

In the previous Winter I built a HB9CV-in-a-box for 23cm for my uplink to the local ATV repeater PI6ATV. Although this antenna works nicely, its gain just isn’t enough when their 23cm preamp is broken (which, unfortunately, is the case most of the time). To achieve a more steady uplink, I decided to build an antenna with a bit more gain, at least 6 dB extra compared to the HB9CV. A short yagi should make this possible. — more →

PC6REC ATV station

[Image]

PC6REC ATV station during the REC Fielddays 2014.

During the 2014 edition of the REC Fielddays I facilitated a live videofeed,  broadcasted throughout the Netherlands. Using three cameras and a bunch of (mostly) vintage hardware, the live stream was uplinked to the local ATV repeater PI6ATV. Viewers could witness all activity on the field to get a glimpse of this annual event. — more →

ATV transmitter for 23cm

[Image]

Front view of my fully assembled 23cm ATV transmitter.

Although I was already able to receive the local ATV repeater PI6ATV, it has been a wish for about 8 years to be able to uplink too. So I once bought a couple of modules from PE1ACB that would allow me to do so. However, due to lack of time and other priorities the modules lost my attention and ended up on some shelf. Since I started my new job I have more spare time, which I spend (among other things) on this fantastic hamradio hobby. So then I remembered those modules. I designed a front panel and bought a case, switches and connectors. — more →

ATV image generator using the Raspberry PI

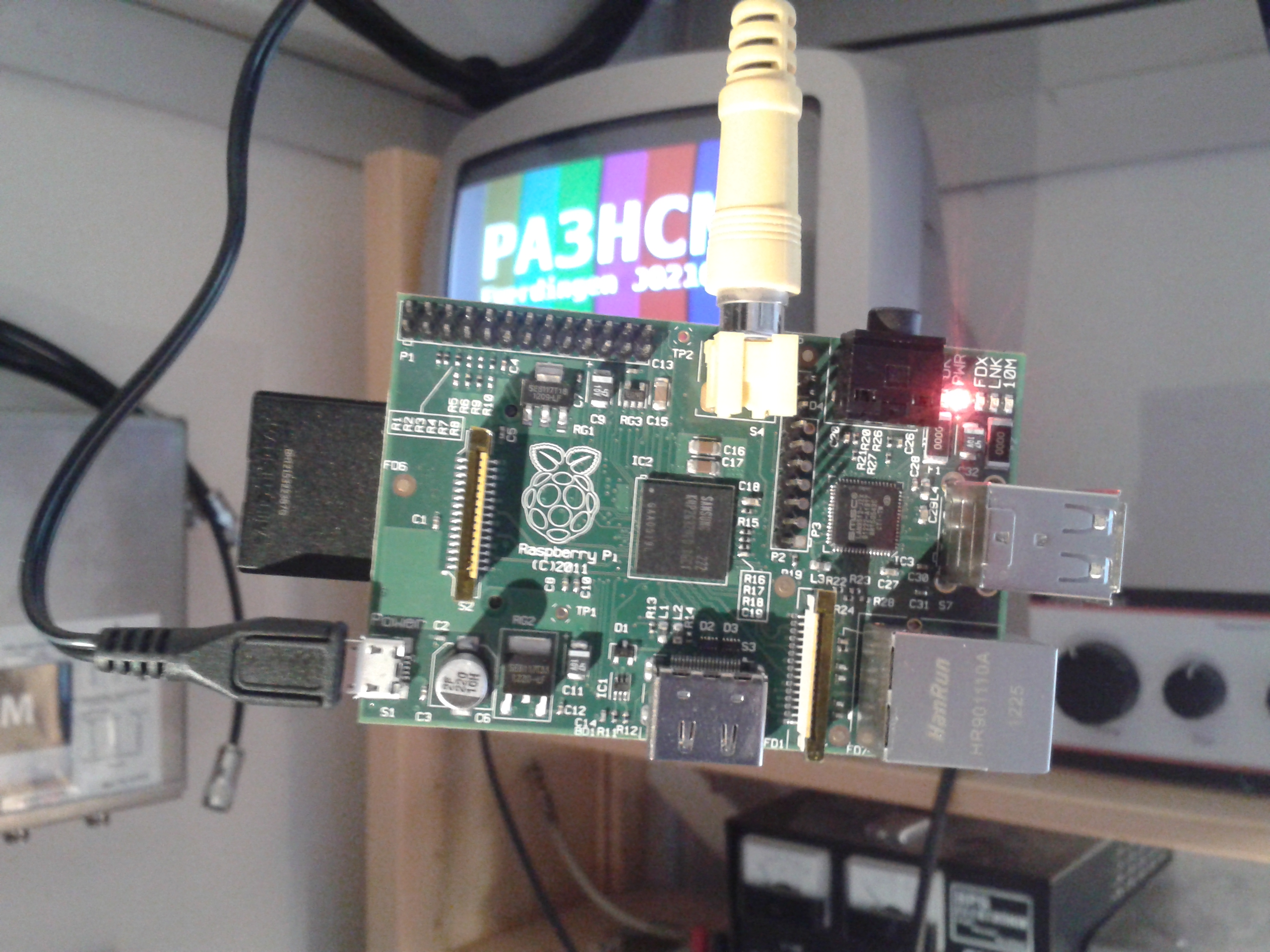

20140101_145231I’ve got a Raspberry PI for a while already, but it hasn’t been very useful until today. I recently started setting up my own ATV (Amateur TeleVision) station. I needed a simple solution to generate a test pattern, something to broadcast when testing my ATV transmitter. Since the Raspberry PI has a composite video output, there must be a way to let the PI do the job.

I found several projects on the internet. However, they produce only HDMI output, no composite video. After browsing the web, I found a very easy solution using the Linux fbi command. This command allows you to load a picture in the frame buffer of the graphics adaptor. — more →

First ATV transmission

[image]

My first 23cm ATV transmission (camera output with text overlay), received by PI6ATV.

I’m working on a 23cm ATV transmitter. A couple of years ago I already bought some modules from PE1ACB: a baseband modulator, a 23cm ATV transmitter (output 1 watt) and a controller unit. Today I hooked up all modules, together with a title generator, a camera and a HB9CV antenna for 23cm. When powering on, I was able to transmit/uplink to the local ATV-repeater PI6ATV and see the result at the repeater’s output  at 10 GHz.

— more →
