Neophyte receiver for 60 meter

[Image]

The receiver is ready, except the RX gain potmeter which is still in backorder…

The Neophyte receiver is an easy-to-build receiver, already built by lots of people. Many radio clubs used it as a project for starting builders. It was developed by John WA3RNC and first published in QST, February 1988. The circuit can be used to create either a 80m or a 40m receiver, depending on a few capacitors. The 60m band is just in between, therefore I decided to find out the correct caps for this new amateur radio band (well… at least new in the Netherlands, from December 2015).

— more →

Receiving SAQ and other VLF stations

[Image]

The huge VLF antenna of SAQ near Grimeton, Sweden (credits).

This article is about receiving radio stations operating in the VLF band (3-30 kHz). Due to the very low frequency, receiving such stations requires some special equipment, since most radios don’t support these low frequencies. One of the interesting stations in this band is SAQ, which occasionally transmits at 17.2 kHz. Other stations include submarine communications and time services. — more →

PoRG v2

[Image]

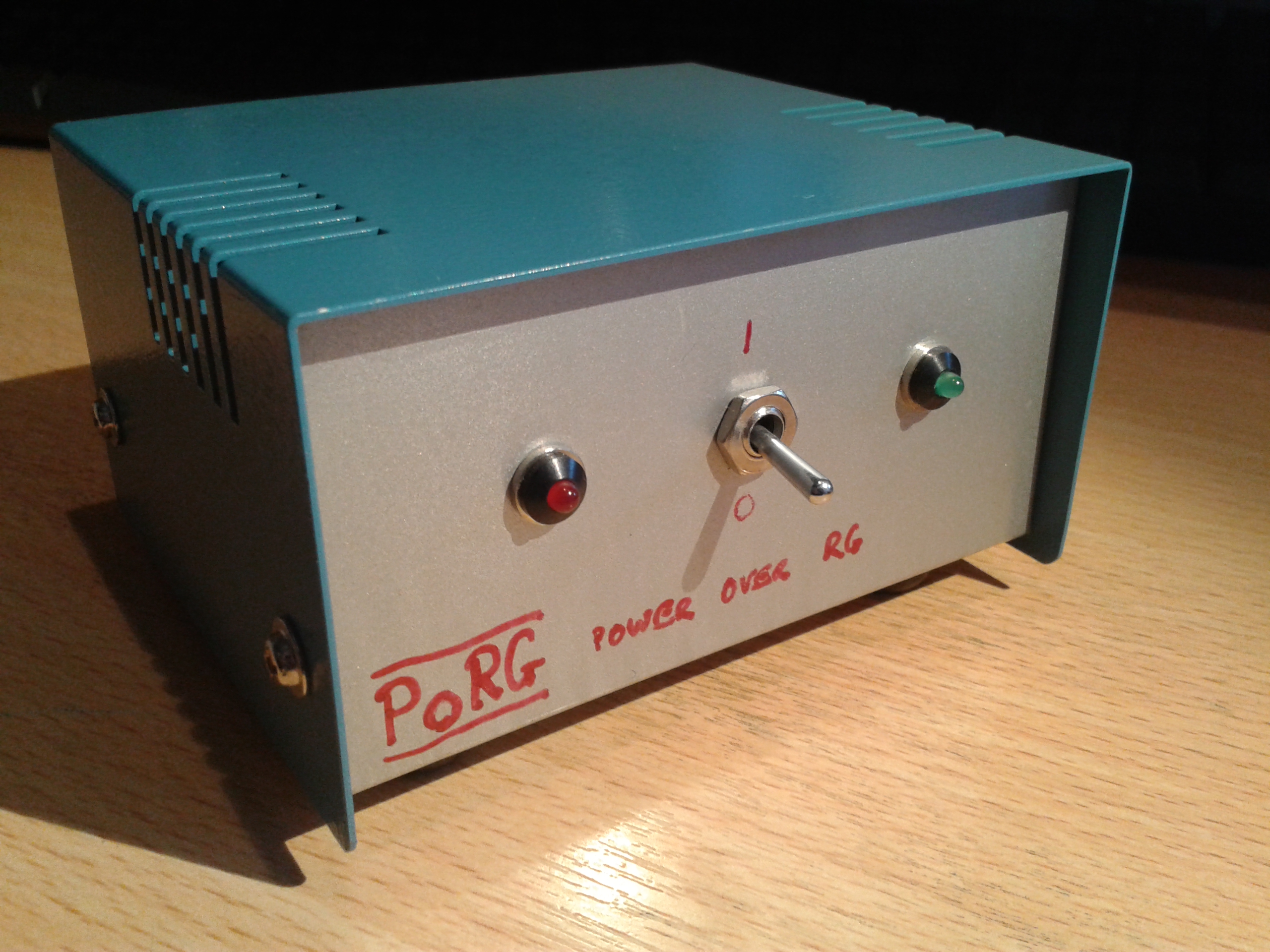

The PoRG v2, in a nice blue box, now including a built-in power supply.

A couple of years ago I built my first PoRG (abbreviation for “Power over RG-cable”), a simple phantom power supply to power some device over antenna cable (e.g. a preamp, active antenna, coax switch, etc). I recently built an active antenna for Adrian PA0RDA, and since his tests were very successful he wanted to have his own PoRG. For me this was a nice opportunity to reinvent this little thing:

  • I included a built-in power supply, so no external power supply is needed anymore.
  • The built-in power supply also prevents the PoRG from moving around your shack due to the forces of the connected cables.
  • It has different connectors for hooking up the transceiver/receiver and antenna, making it more difficult to accidentally swap the cables, insert DC power into your radio and see smoke appearing through the vents of your rig.

— more →

Spijkerradio

Introduction

“Spijker” is a dutch word for nail, which you would normally use to hang something on the wall, or to construct wooden stuff. However, (brass) nails can also be used as as solder pad. PA0KLS used this idea to construct a receiver, called the “Spijkerradio” (nail radio). It is a nice project for starters to build their own radio.

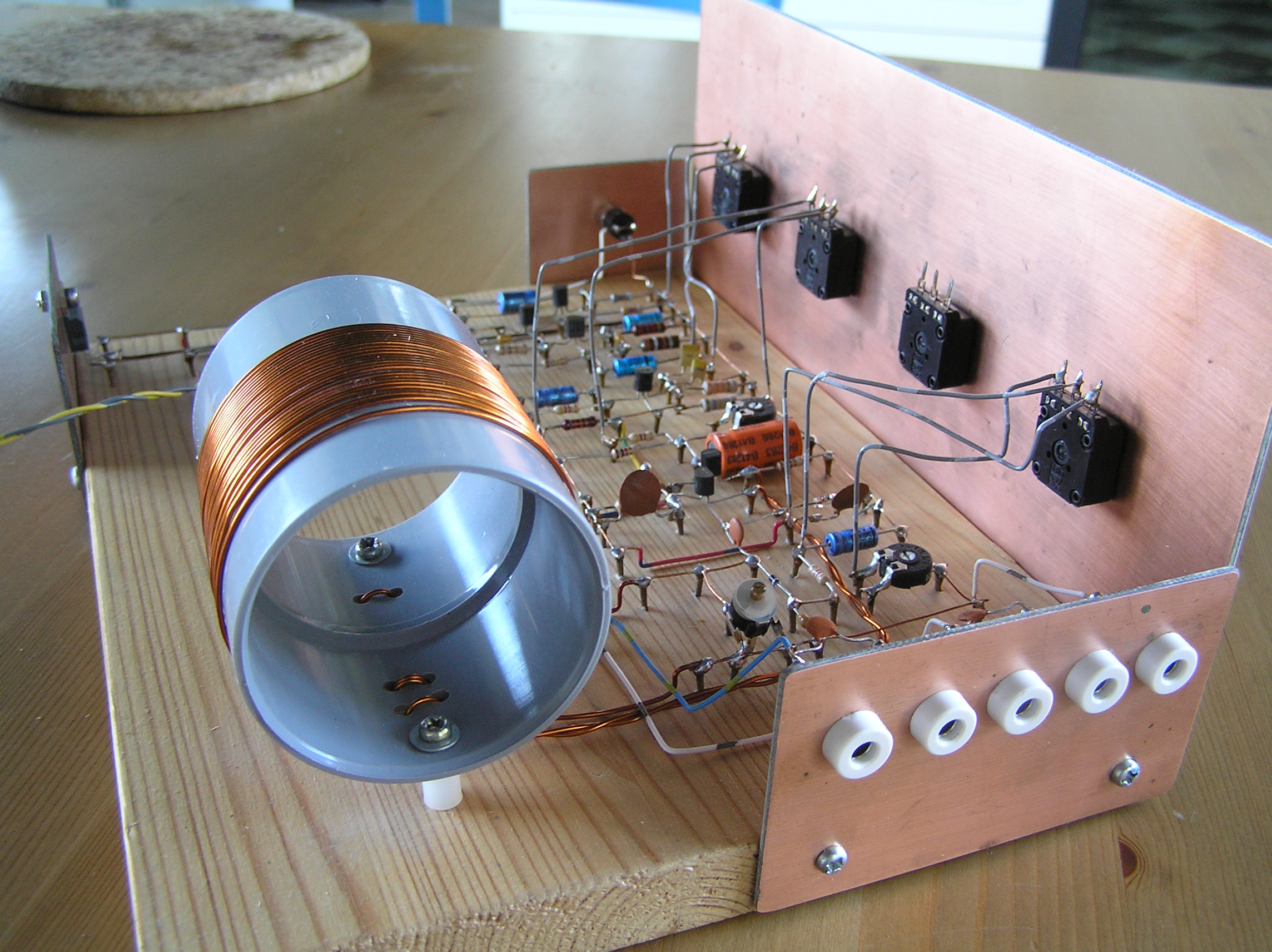

OLYMPUS DIGITAL CAMERA

The receiver is based on the good old 0V1. This was a very simple receiver with only one tube. PA0KLS redesigned the schema to replace the tube by transistors. He also added a small audio amplifier to allow usage of modern (low impedance) headphones or a small speaker. — more →
